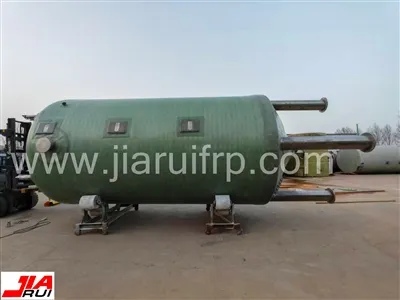

In the chemical, environmental, and food processing industries, the accumulation of residue at the bottom of storage tanks has always been a major pain point affecting batch changeover efficiency and cleaning costs. To address this need, the FRP Cone Bottom Storage Tank designs its bottom into a conical structure at a specific angle, allowing the medium to naturally drain under gravity, thus avoiding the risks of material sedimentation and cross-contamination common in flat-bottom tanks.
Structural Design and Mechanical Properties
The core of the conical bottom storage tank lies in the transition between its bottom cone angle and the cylindrical body. Typically, the cone angle ranges from 30° to 60°, depending on the fluidity of the medium. During manufacturing, the advantage of FRP (glass fiber reinforced plastic) lies in its ability to combine alkali-free glass fiber with corrosion-resistant resins (such as vinyl ester or polyester resin) through a winding molding process, creating a seamless, integral structure between the cone and the cylindrical body. This is crucial because the junction between the conical bottom and the cylinder is often a stress concentration zone-the use of continuously wound Fibergalss avoids the risk of intergranular corrosion in the welded metal areas, and its fatigue resistance is more stable under dynamic loads.
It is worth noting that the support method for conical bottom tanks is completely different from that of flat-bottom tanks. Flat-bottom tanks are usually supported by a full-plane foundation, while conical bottom tanks require conical supports or skirts.
Material Selection Logic
When selecting materials, it is important to note that the type of resin must be precisely matched to the temperature and concentration of the medium. For example, sodium hypochlorite solution accelerates the degradation of epoxy resin at 40°C, in which case phenolic vinyl ester should be used; while for solvents (such as acetone), bisphenol A polyester should be used with an additional surface felt anti-permeability layer. Some suppliers offer "antistatic linings" or "conductive carbon fiber layers," which are necessary for the storage of flammable media (such as toluene and methanol).
Typical Application Areas and Selection Considerations
In the water treatment industry, FRP cone bottom storage tanks are often used as storage tanks for lime slurry or sludge. For the former, the high calcium content easily clogs the discharge port of the flat-bottom tank, while the cone bottom, combined with a pneumatic slide valve, allows for periodic drainage of sediment. For the latter, the cone angle allows high-moisture sludge to slide down to the screw pump inlet, avoiding bridging. Another highly adaptable application is in electroplating production lines: wastewater containing chromium and nickel needs to be intermittently discharged to a neutralization tank. The cone bottom tank sidewall can be equipped with sight glasses and ultrasonic level gauge interfaces. During installation, care should be taken to avoid connecting the instrument pipes to the reinforced area of the cone weld.
Installation and Maintenance Engineering Practices
A common misconception in the on-site hoisting of cone bottom storage tanks is that some construction workers directly tie the small end of the cone for lifting, causing cracks in the laminated plate at the cone tip. The correct procedure is to use slings to wrap around the reinforcing ring at the top of the tank and install temporary cross supports inside the cone bottom. Regarding foundation treatment, since the discharge valve needs to be suspended at the bottom of the cone, the foundation platform should have a manhole or maintenance access.
During long-term operation, close attention should be paid to the erosion and wear of the inner wall of the cone (especially with media containing solid particles). Maintenance personnel can use an ultrasonic thickness gauge to check the remaining thickness of the cone at 1/3 of the distance from the bottom of the tank-the erosion rate in this area is typically 2-3 times that of the upper part of the tank due to the fluid acceleration effect. Surprisingly, the connection between the cone bottom and the discharge flange is a weak point in corrosion: the resin-rich area here may develop micro-cracks due to curing shrinkage. It is recommended to perform an electric spark test every two years (the test voltage is set to 5kV per millimeter of wall thickness). If local leakage is found, it can be repaired using an FRP hand lay-up patching process.
Industry Trends and Cost Considerations
In recent years, modularly designed FRP Cone Bottom Storage Tanks have rapidly become popular in small and medium-sized wastewater treatment plants. Suppliers pre-assemble the tank, agitator interface, level gauge sleeve, and discharge valve assembly at the factory, requiring only the connection of inlet and outlet pipes on site. However, users need to weigh the transportation limitations: conical bottom tanks with a diameter of more than 3.2 meters need to be transported in parts, and the strength of the circumferential seam after secondary bonding on site is about 85% of the original strength. Therefore, for long-distance projects, regional manufacturing services should be chosen.
